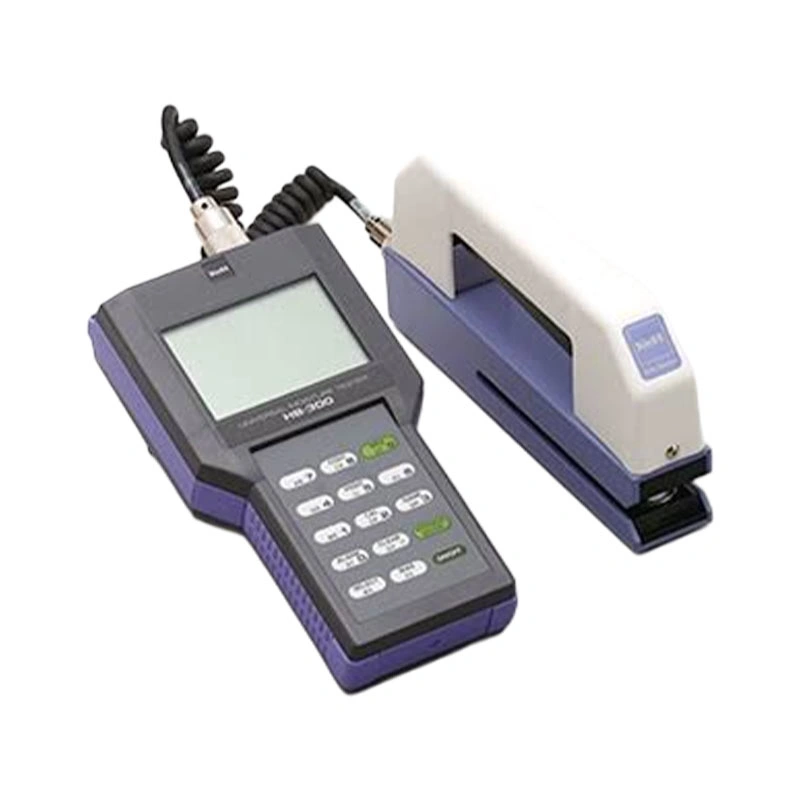

HK300 Instant Paper Moisture Meter
Instant Paper Moisture Meter: Three Sensors, One Digital Instrument
Measure moisture in copy paper, kraft, liner board, and cardboard in about three seconds using the electrical resistance method, with no sample preparation. The handheld main unit pairs with your choice of three interchangeable sensors, sold separately; at least one sensor is required.
- Instant, non-destructive readings: Press the sensor to the sample and read moisture directly, with 0.1% resolution
- Three sensor options: Grip sensor for single sheets, rubber sensor for rolls and stacks, constant pressure sensor for low moisture
- K100/K200 compatible: Same kraft and liner calibration curves as the testers it replaced, so historical records stay comparable
- Complete QC toolkit: 10 user calibration curves, 250-reading memory, averaging, alarm limits, and printer output
| Parameter | Specification Details |
|---|---|
| Model | HK300 |
| Measurement Principle | Electric Resistance |
| Measurement Range Moisture % | Copy Paper: 2–25% Cardboard: 6–20% Liner Board: 5–23% Kraft Paper: 2–24% Sensor Dependent |
| Response Time | Instant |
| Accuracy | +/- 0.4% (under 15%) |
| Resolution | 0.1% |
| Display | Product, Value |
| Ambient Temperature | 0–40°C |
| Ambient Humidity | 0–85% RH (non-condensing) |
| Power Source | 6 × 1.5V (AA Batteries – incl.), Approx. 0.45W |
| Functions | Average, Offset, Alarm, Auto-Off |
| Display Type | LCD (Digital) |
| Communications | RS232C |
| Printer | Optional – VZ330 |
| Measurement Mode | Single |
| Weight (kg) (Net/Shipment) | 0.5 / 3 |
| Dimensions (mm) | 110W × 50H × 210(D) |
| Warranty | One Year – Parts and Labor; Maintenance Agreements available |
