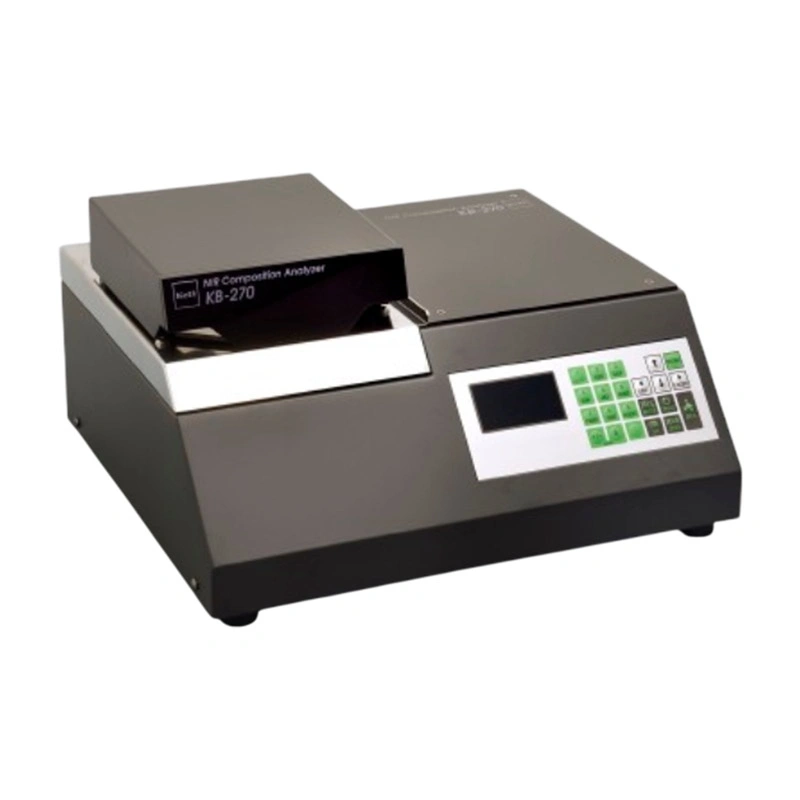

KB270 Desktop NIR Composition Meter
Desktop NIR Composition Meter — Moisture, Water Activity, Fat, Protein, and
More in Seconds
Measure multiple organic components simultaneously with a single non-destructive test. Test results are instant. Even when averaging across a varied sample, the final reading is returned in under 10 seconds. The KB270 uses near-infrared light to deliver lab-grade composition data without chemicals, sample destruction, or
specialized training.
- Multi-Component Analysis: Measure moisture, water activity, fat, protein, solids, BTU, coat weight, film thickness, and calculated ash from one instrument.
- 50 Stored Calibrations: Switch between products and parameters instantly. Password protection prevents unauthorized changes.
- Non-Destructive: NIR light does not alter the sample. Test and return it to the batch or use it for additional analysis.
Specifications :
| Model | KB270 |
| Measurement Range | 0-100% |
| Measurement Distance | N/A |
| Measurement Diameter | 150/90mm,30 (opt), custom |
| Response Time | Instantaneous |
| Refresh Rate | 0.5 Seconds |
| Analytical Curves | 50 Internal Unlimited from the PC/Laptop |
| Ambient Temperature | 0-35°C |
| Ambient Humidity | 0-90% RH Non Condensing |
| Accuracy | +/-0.01% or better (reference-dependent) |
| Precision | To 0.001% nominal |
| Display | Channel. Name, Absorbance, Value |
| Power Source | 100-200V +/- 10% VAC 50W |
| Measuring Principle | NIR Reflectance/Absorbance or Transmission |
| Light Source | Tungsten Lamp |
| Detector | Lead Sulfide |
| Display Type | OLED |
| Communications | USB, Ethernet |
| Measurement Modes | Sample or Constant |
| Printer Option | VZ800 |
| Weight (Net/Shipment) | 11/18.2kg |
| Dimensions (mm) | 230Hx415Wx370D |
| Warranty | Total Care Warranty Maintenance Agreements Available |
